Oxygen Cylinder
Model No.︰
LW-OC-40/ 50/10
Brand Name︰
LONGWAY
Country of Origin︰
China
Unit Price︰
US $ 1 / pc
Minimum Order︰
1 pc
Total 23 Related Items
Product Description
Product Specifications:
Oxygen Cylinder 50L | LW-OC-50
Capacity: 50L;
Height: 1.45m;
Weight: 53Kg;
Working Pressure: 15Mpa| 150BAR;
Testing Pressure: 25Mpa| 250BAR;
Material: 37Mn
OR:
Working Pressure:20Mpa|200Bar;
Testing Pressure:30Mpa|300Bar;
Material:34CrMo4
wall thickness:5.5mm

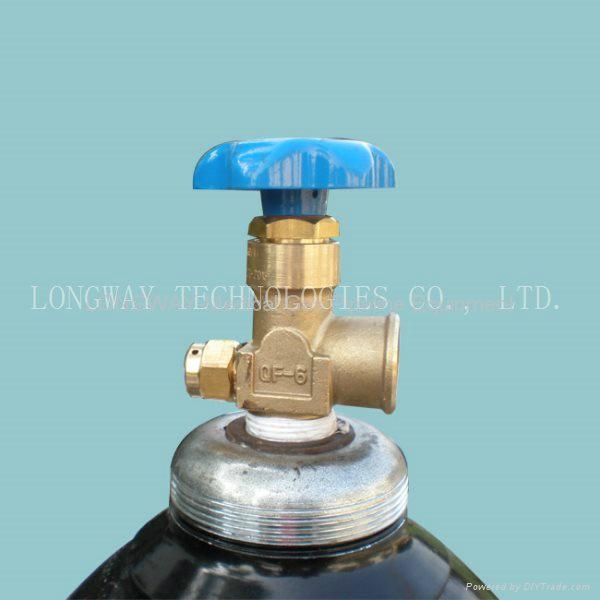

Valve Type: CGA540 cylinder valve or various valves according to customer standard
Input screw: PZ27.8
Oxygen Cylinder 40L | LW-OC-40
Capacity: 40L;
Gas Capacity:6CBM;
Inner diameter:219mm; Outer diameter:231mm
Height: 1.45m;
Weight: 50Kg;
Working Pressure: 15Mpa| 150BAR;
Testing Pressure: 25Mpa|250BAR;
Material: 37Mn
Valve Type: CGA540 cylinder valve or various valves according to customer standard
Input screw: PZ27.8
Oxygen Cylinder 10L | LW-OC-10
Capacity: 10L;
Gas Capacity:1.5CBM;
Inner diameter:144mm; Outer diameter:152mm
Height: 825mm;
Weight: 13.5Kg;
Working Pressure: 15Mpa| 150BAR;
Testing Pressure: 22.5Mpa| 225BAR;
Material: 37Mn
|
